Electromagnetic Parking Sensor Invisible | Proxel Electromagnetic Parking Sensor Invisible | Proxel Electromagnetic Parking Sensor invisible EPS | no holes on the bumper

Quick installation example

The EPS® parking sensor has an easy mounting procedure and comes complete with Universal Installation Instructions enabling any good DIYer to install this without any problems making the installation simple, safe and secure.

Here all the components of the complete set of the model EPS-DUAL 3.0



Central unit parking sensors EPS-DUAL 3.0

Central unit

Antenna sensor

Antenna sensor

Data cable for antenna connection

Data cable

Special butyl mastic

Special butyl mastic

Power cable

Power cable

Buzzer / speaker

Buzzer






Application of antenna sensor:

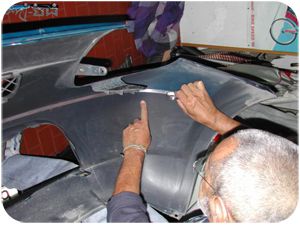

You must first remove the bumper in order to apply the metal strip provided in the kit (it is like an adhesive tape) along the inner surface of the bumper itself.



Application of antenna sensor - start
Application of antenna sensor

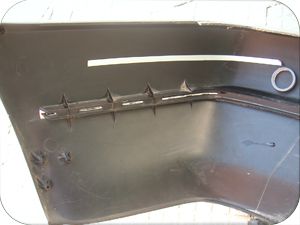

It is possible to apply the antenna sensor even within bumper affected by some irregularities, as in the example photo. The tape can be bent and curved to follow the shape of the structure.

Example antenna installation on an irregular bumper - Alfa




Electrical connections and positioning of the central unit:

After the application of the antenna sensor you must make the electrical connections of the Data cable. Connect the positive and negative power supply wiring to the positive and negative of the back gear lamp. In this way the system is activated only when the reverse is engaged.

The electronic unit is very small and you can easily place it inside the car close the back gear lamp.



Connect wiring to the sensor antenna
Connect power supply wiring to reverse lamp

Positioning Buzzer:

Finally you can place inside the car cabin the small loudspeaker.



Positioning buzzer

Positioning the Buzzer
